GTW9A Torin Drive Traction Motor | Elevator Traction Motor

Model: GTW9A

Specifications:

Feature

Specification

Speed Range

1.0–2.0 m/s

Load

800–1250 kg

Power Range

9.9–16.3 kW

Weight

350KG

IP Code

IP41

Rating

S5 (40%)

INS. Class

Catalog

Send Inquiry

Product Details

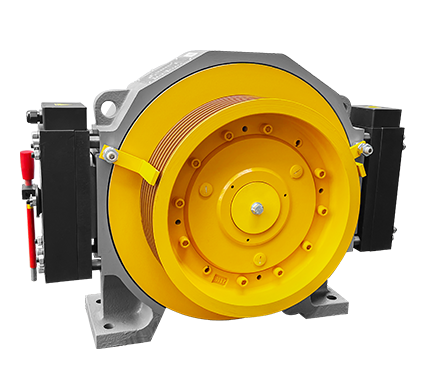

GTW9A Torin Drive Traction Motor | Elevator Traction Motor

TorinDrive GTW9A Traction Machine is the high-efficiency electric motor that directly drives the elevator’s sheave (pulley), moving steel cables to transport the elevator car and counterweight with precision. Engineered as a gearless Permanent Magnet Synchronous Motor (PMSM), it eliminates mechanical friction, reduces energy consumption by up to 40%, and ensures whisper-quiet operation (<50 dB) for residential and high-rise buildings.

Specifications:

Feature	Specification
Speed Range	1.0–2.0 m/s
Load	800–1250 kg
Power Range	9.9–16.3 kW
Weight	350KG
IP Code	IP41
Rating	S5 (40%)
INS. Class	F

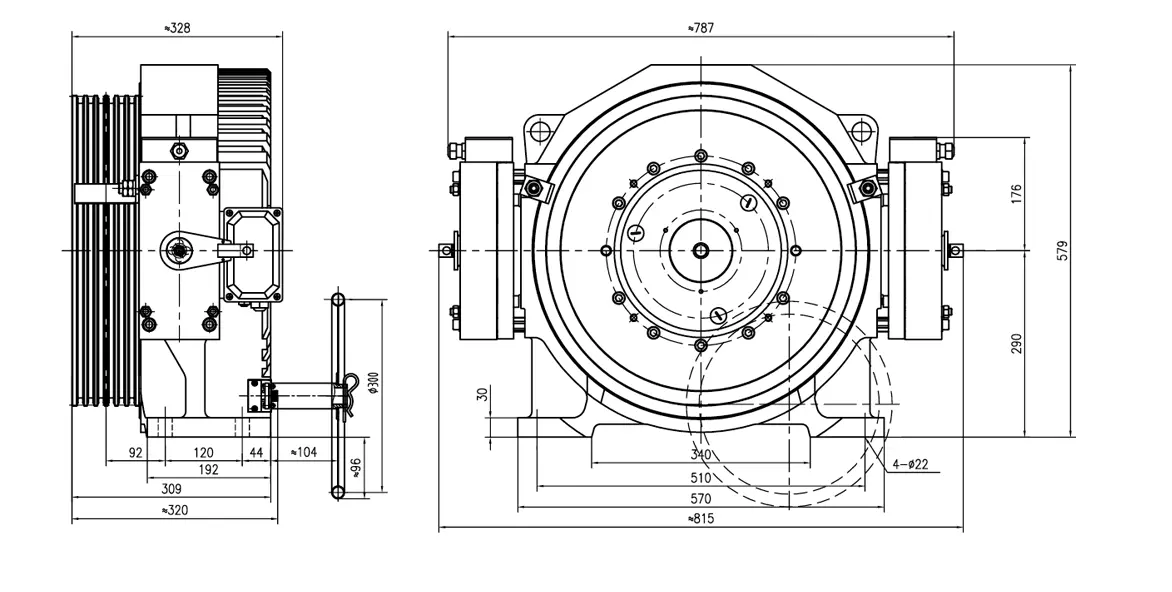

Dimensions:

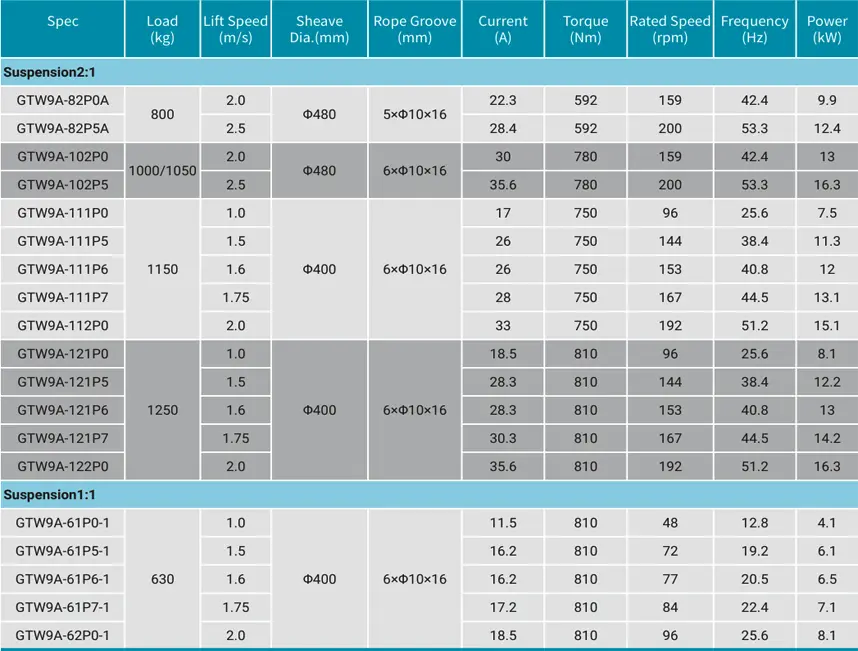

Technical Data:

Q/A: Elevator Industry Insights

What certifications and standards does TorinDrive comply with? +

TorinDrive traction machines are rigorously tested and certified to meet major international safety and performance standards, including EN 81-20/50 (Europe), ASME A17.1/CSA B44 (North America), and GB standards (China). They also typically hold CE marking and may have specific certifications for efficiency (e.g., IE4/IE5).

Why is low noise operation important, and how does TorinDrive achieve it? +

Low noise is critical for passenger comfort, especially in residential buildings, hotels, and high-end offices. TorinDrive achieves remarkably low noise levels (<50 dB) through its gearless design (eliminating gear noise), precision-balanced rotating components, advanced electromagnetic optimization minimizing vibration, and high-quality bearings. This ensures a quiet environment near machine rooms and smooth rides.
